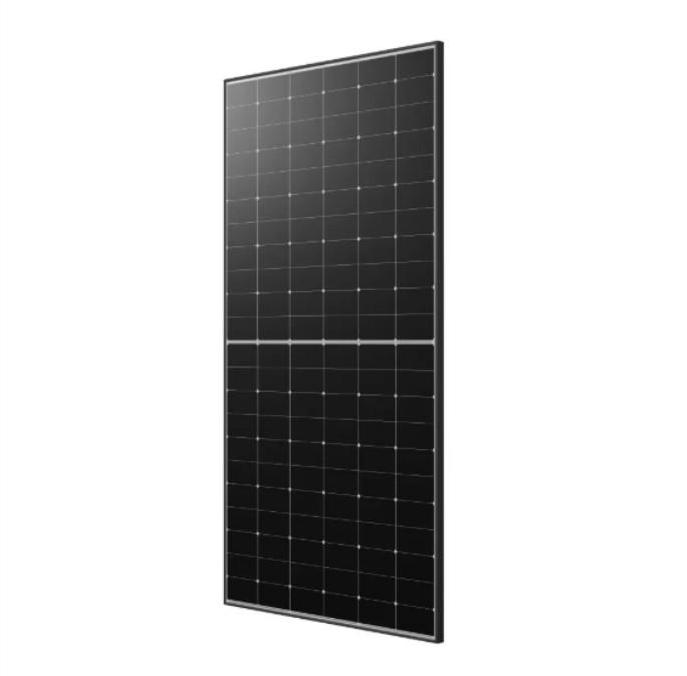

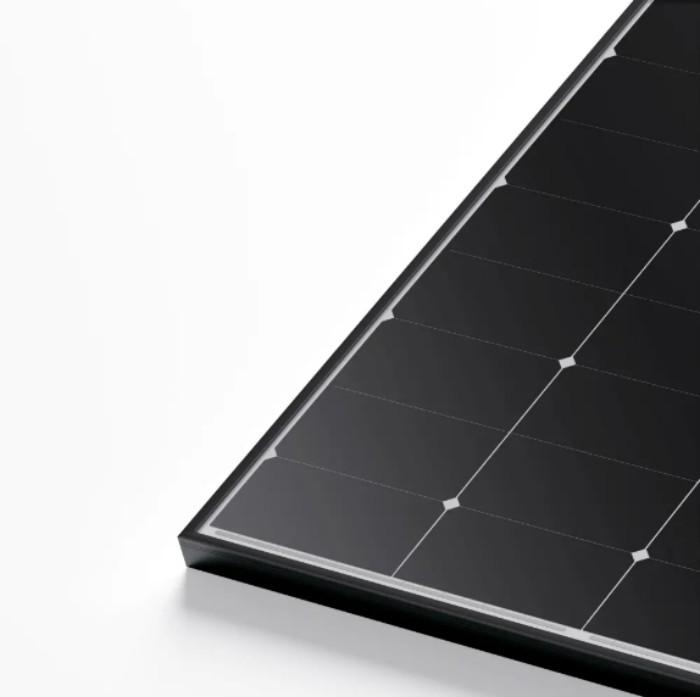

Solar Panel
Photovoltaic module, photovoltaic panel or solar panel is a product that interconnects and packages many photovoltaic cells (PV cells) into a whole. A photovoltaic array composed of multiple photovoltaic templates interconnected is called a solar array. The power generation scale achieved by such interconnection can be provided for commercial buildings and residential uses.
A single photovoltaic panel can only generate a certain amount of electricity. The most common size is 60 sections, with a power generation of about 350 to 400W. A photovoltaic array is formed by connecting many photovoltaic modules to each other. Photovoltaic power generation (solar power generation) usually uses a photovoltaic array or several photovoltaic modules with an inverter, battery pack and interconnection lines.
Mono Solar Panel
To produce a monocrystalline silicon cells, absolutely pure semiconduction material is necessary. Monocrystalline rods are extracted from melted silicon and then sawed into thin plates. This production process guarantees a relatively high level of efficiency silicon and makes monocrystalline panels one of the most efficient, producing smaller solar cells, and therefore smaller panels. Monocrystalline works very well in bright cool conditions.
Poly Solar Panel
Polycrystalline solar panels are also made from silicon. However, instead of using a single crystal of silicon, manufacturers melt many fragments of silicon together to form the wafers for the panel. Polycrystalline solar panels are also referred to as "multi-crystalline" or many-crystal silicon. Because there are many crystals in each cell, there is to less freedom for the electrons to move. As a result, polycrystalline solar panels have lower efficiency ratings than monocrystalline panels.
Product Features
1. High conversion efficiency based on leading innovative photovoltaic technologies;
2. High stability with guaranteed+/-3%power output tolerance, ensuring return on investment;
3. Beautiful appearance;
4. Sealed with high transparency low iron tempered glass, anti-aging EVA, high insulation TPT, with the anodizing (or plating finish);
5. Withstands high wind-pressure and snow load;
Product Parameters
ELECTRICAL DATA(STC)
|
Module Type |
JY144M-530 |
JY144M-535 |
JY144M-540 |
JY144M-545 |
JY144M-550 |
|
Rated output (Pmp/Wp) |
530 |
535 |
540 |
545 |
550 |
|
Short Circuit Current(Isc) |
13.76A |
13.81A |
13.87A |
13.93A |
13.99A |
|
Open Circuit Voltage(Voc) |
49.0V |
49.2V |
49.4V |
49.6V |
49.8V |
|
Maximum Power Current(Impp) |
13.0A |
13.05A |
13.11A |
13.17A |
13.23A |
|
Maximum Power Voltage(Vmpp) |
40.8V |
41.0V |
41.2V |
41.4V |
41.6V |
|
Module efficiency(%) |
20.4% |
20.6% |
20.8% |
21.0% |
21.2% |
|
Power Tolerance (W) |
0~+5W |
0~+5W |
0~+5W |
0~+5W |
0~+5W |
|
Standard Test Condition(STC) |
Irradiance 1000W/m², Cell Tempera ture 25ºC, AM1.5 |
||||
ELECTRICAL DATA(NOCT)
|
Module Type |
JY144M-530 |
JY144M-535 |
JY144M-540 |
JY144M-545 |
JY144M-550 |
|
Rated output (Pmp/Wp) |
395.4 |
398.9 |
402.7 |
406.6 |
410.5 |
|
Short Circuit Current(Isc) |
11.09 |
11.13 |
11.18 |
11.23 |
11.28 |
|
Open Circuit Voltage(Voc) |
45.9 |
46.1 |
46.3 |
46.4 |
46.6 |
|
Maximum Power Current(Impp) |
10.4 |
10.44 |
10.49 |
10.54 |
10.58 |
|
Maximum Power Voltage(Vmpp) |
38 |
38.2 |
38.4 |
38.6 |
38.8 |
|
Nominal Module Operating Temperature(NOCT) |
Irradiance 800W/m²,Ambient Temperature 20ºC, AM1.5, Wind Speed 1m/s |
||||
|
Model Type |
Power(W) |
Number of Cells |
Dimensions(MM) |
Weight(KG) |
Vmp(V) |
Imp(A) |
Voc(V) |
Isc(A) |
|
JY650S9 |
650 |
132 |
2411*1303*40 |
34.5 |
37.9 |
17.15 |
45.5 |
18.32 |
|
JY660S9 |
660 |
132 |
2411*1303*40 |
34.5 |
38.0 |
17.37 |
45.6 |
18.32 |
|
JY670S9 |
670 |
132 |
2411*1303*40 |
34.5 |
38.1 |
17.59 |
45.7 |
18.33 |
|
JY680S9 |
680 |
132 |
2411*1303*40 |
34.5 |
38.2 |
17.80 |
45.8 |
18.56 |
|
JY690S9 |
690 |
132 |
2411*1303*40 |
34.5 |
38.3 |
18.02 |
45.9 |
18.79 |
|
JY700S9 |
700 |
132 |
2411*1303*40 |
34.5 |
38.4 |
18.23 |
46.0 |
19.02 |
|
Standard test conditions:measured values(atmosphiric mass AM.5,irradiance 1000W/m2,battery temperature 25ºC) |
||||||||
|
Temperature rating |
||||||||
|
Rated battery operating temperature |
45±2ºC |
|||||||
|
Maximum power temperature coefficient |
-0.4%/ºC |
|||||||
|
Open circuit voltage temperature coefficient |
-0.29%/ºC |
|||||||
|
Short circuit current temperature coefficient |
-0.05%/ºC |
|||||||
|
Limit parameter |
||||||||
|
Operating temperature |
-40-+85ºC |
|||||||
|
Maximum system voltage |
1000/1500VDC |
|||||||
|
Maximum fuse rated current |
25A |
|||||||
